Note: on the basis of five layers of sintered net plus a layer of 12 mesh screen to become six layers of sintered net, the thickness of 3.5mm pressure resistance is better.

Description

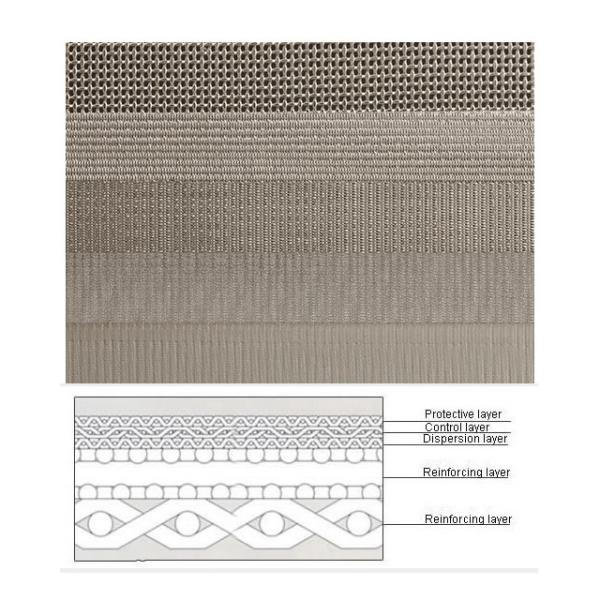

This is one of the most widely used standard structure sintered mesh.It is five layers of stainless steel mesh in accordance with different structures stacked together, and then through sintering, pressure, rolling and other processes produced by porous sintering materials.

Advantages:

Large filtration accuracy range: from 1μ-100μs, have reliable filtration performance;

● Filter accuracy is stable: due to the upper and lower two layers of screen to do protection, the filter layer mesh is not easy to deformation;

● Good strength: due to the fourth, fifth layer to do the support, inherent high pressure resistance and mechanical strength;

● Easy to clean: because the surface filter material is used, it has the characteristics of easy cleaning, especially suitable for backwashing;

● High temperature resistance: can withstand 480℃ high temperature;

● Corrosion resistance: due to the use of stainless steel materials and special alloy materials, so high corrosion resistance;

● Easy processing: suitable for cutting, bending, stamping, stretching, welding and other processing conditions.

Material:

Standard material SS304, SS304L, SS316, SS316L.We can also make Hastelloy alloy C-276, Monel alloy 400, Inconel 600, SS904, SS904L, duplex stainless steel 2205 and other special alloys for customers.

size

The standard size is 500x1000mm, 600x1200mm, 1000x1000mm, 1200x1200mm, 1200x1500mm.Dimensions in the above range can be customized according to user requirements.

Dezhou FLD Filter Co. Ltd(FLD) was established in 2006 and located in Economic and Technology development zone, Dezhou, Shandong province. FLD is a manufacturer specialized in production of metal filters. Its annual value of production is over 20 million RMB. Its main products are Pleated Type Filter, Metal Filter Basket, Metal Cylinders, Filter Discs, Candle Type Filter and other products. The main production equipment is imported from USA, based on excellent welding and molding technology, products filtering efficiency, service life, welding technology, etc. The products reached advanced international level and entered quickly into international middle and high-end market. These products are widely applied in Petrochemical, Plastic & Fiber, Food and Pharmacy, Aeronautics & Astronautics, New Energy, Environmental Protection and Auto industries.

With 10 years development, FLD has become a famous brand in the worldwide market, with sales to more than 10 countries, 60% of sales revenue are to Europe and North America.

The company has passed the ISO and TS16949 quality management system certification, and continues to implement and improve. In order to ensure the safety of employees and healthy working environment, our company has carried out and passed the work safety standardization and occupational disease hazards risk control system certification. The Company has upheld the "refinement, zero defect" quality management policy, and put the quality consciousness and concept into all aspects of company operations.

FLD has received 15 patents regarding R&D, formula, technique on products and equipment, including 2 invention patents, 1 software copyright patent, 11 utility model patents, and 1 appearance patent. The high-end irregular mesh screen successfully developed by our company can be used up to 400 times, has broken the bottleneck of filter material and processing techniques facing domestic peers, and become a model solution for melt filtration.

FLD has been devoting to meeting customized & potential R&D demands, and continuously offered technical support and systematic total solution, and helped our partners strengthen their core competitive advantage in the marketplace.
